C17300/CuBe2Pb/CW102C/DIN 2.1248 Leaded Beryllium Copper
Chemical Composition:
Be: 1.8-2.0%
Co+Ni: 0.20% Min.
Co+Ni+Fe: 0.60% Max.
Lead: 0.20-0.60%
Cu: Balance
Note: Copper plus additions equal 99.5% minimum.
Shapes :

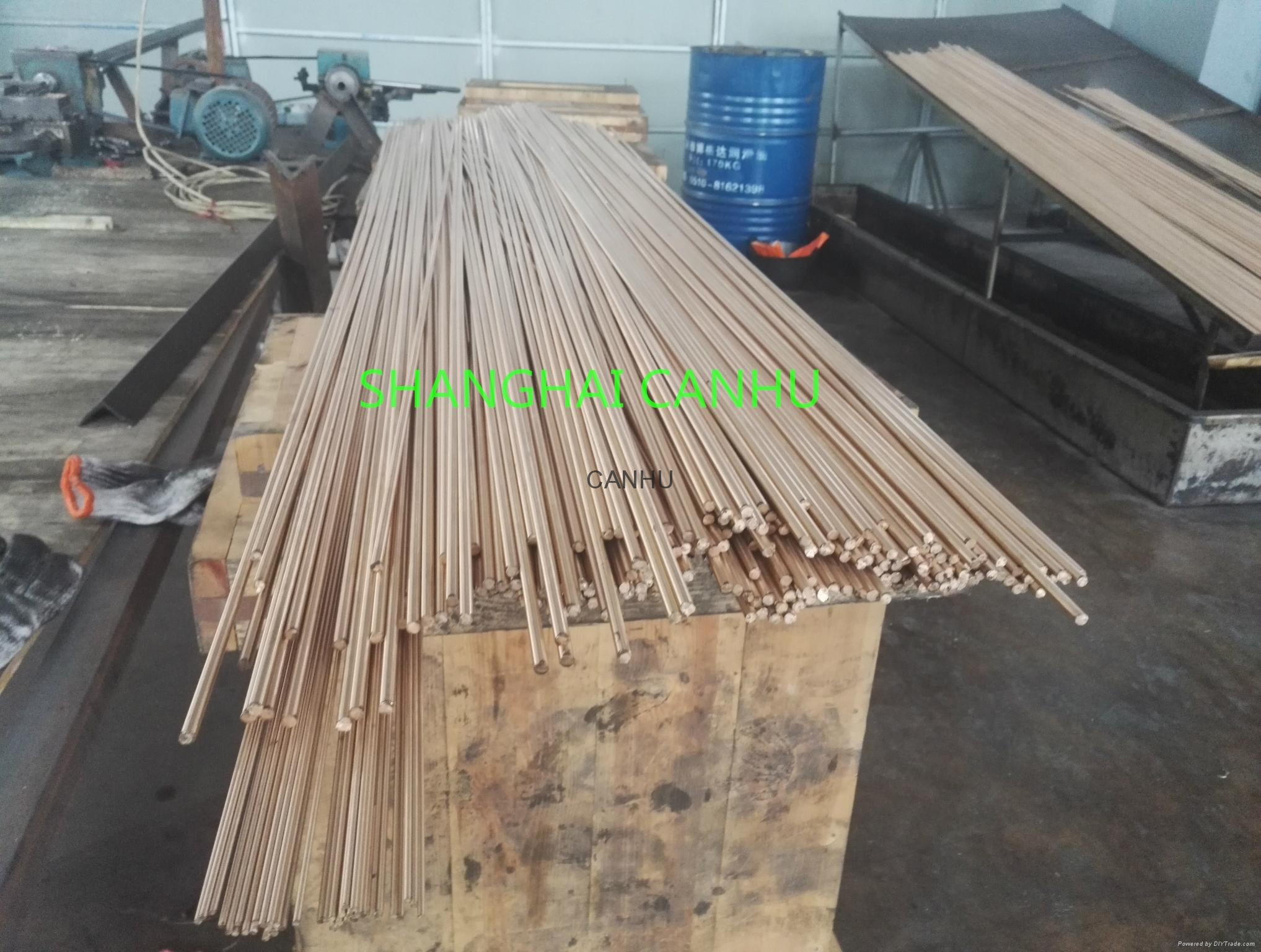

Round bars, Round wires, Round tube,
Flat bars, Square bars, Rectangular bars, Hexagon bars, Plates, Sheets, Coils
Custom shapes are available upon request.
Available Sizes:
Rod: Dia.5~16mm; Wire: Dia.0.1-5.0mm
Tube: OD10~60mm, ThK 0.1~10mm
Plate: thk min 0.5mm
Custom Diameter & Sizes, Random Mill lengths
Related Standard :
Rods/Bars/Tubes: ASTM B196, QQ-C-530
Wires: ASTM B197, QQ-C-530,
Plates: ASTM B194
European Standards: DIN 2.1248, CW102C to EN
Other material are also available
C17200/CuBe2/CW101C/DIN 2.1247
C17500/CuCo2Be/CW104C/DIN 2.1285
C17510/CuNi2Be/CW110C/DIN 2.0850
CuCo1Ni1Be/CW103C
Payment Terms︰ T/T, L/C
