C17510 Nickel Beryllium Copper Alloy

C17510 Nickel Beryllium Copper Alloy

Model No.︰C17510

Brand Name︰-

Country of Origin︰China

Unit Price︰-

Minimum Order︰1 KG

Inquire Now

Product Description

C17510/CuNi2Be/CW110C/DIN 2.0850 Nickel Beryllium Copper



Chemical Composition:

Be: 0.20-0.60%
Ni: 1.40-2.20%
Cu: Balance
Note: Copper plus additions equal 99.5% minimum.



Shapes :
Round bars, Round wires, Round tube,
Flat bars, Square bars, Rectangular bars, Hexagon bars, Plates, Sheets, Coils
Custom shapes are available upon request.



Available Sizes:

Rod: Dia.5~16mm; Wire: Dia.0.1-5.0mm

Tube: OD10~60mm, ThK 0.1~10mm

Plate: thk min 0.5mm

Custom Diameter & Sizes, Random Mill lengths



Related Standard :

Rods/Bars/Tubes: ASTM B441, SAE J461,463; RWMA Class 3
Strips: ASTM B534, RWMA Class 3
Sheets: ASTM B534, RWMA Class 3
Wires: ASTM B441
Plates: ASTM B534, SAE J461,463; RWMA Class 3

European Standards: CuNi2Be, DIN.2.0850, CW110C to EN



Other material are also available

C17200/CuBe2/CW101C/DIN 2.1247

C17300/CuBe2Pb/CW102C/DIN 2.1248

C17500/CuCo2Be/CW104C/DIN 2.1285

C17510/CuNi2Be/CW110C/DIN 2.0850

CuCo1Ni1Be/CW103C

Payment Terms︰ T/T, L/C

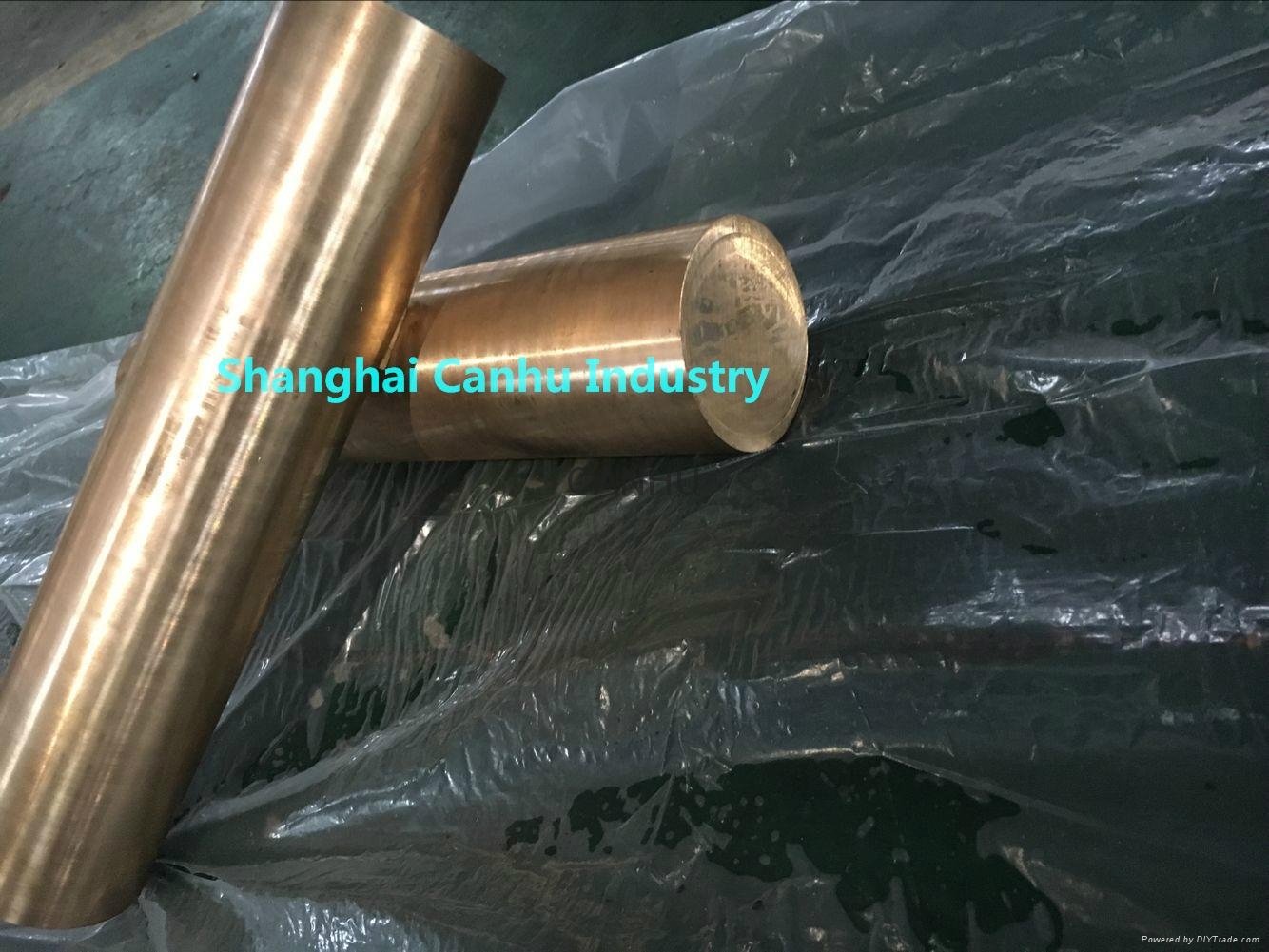

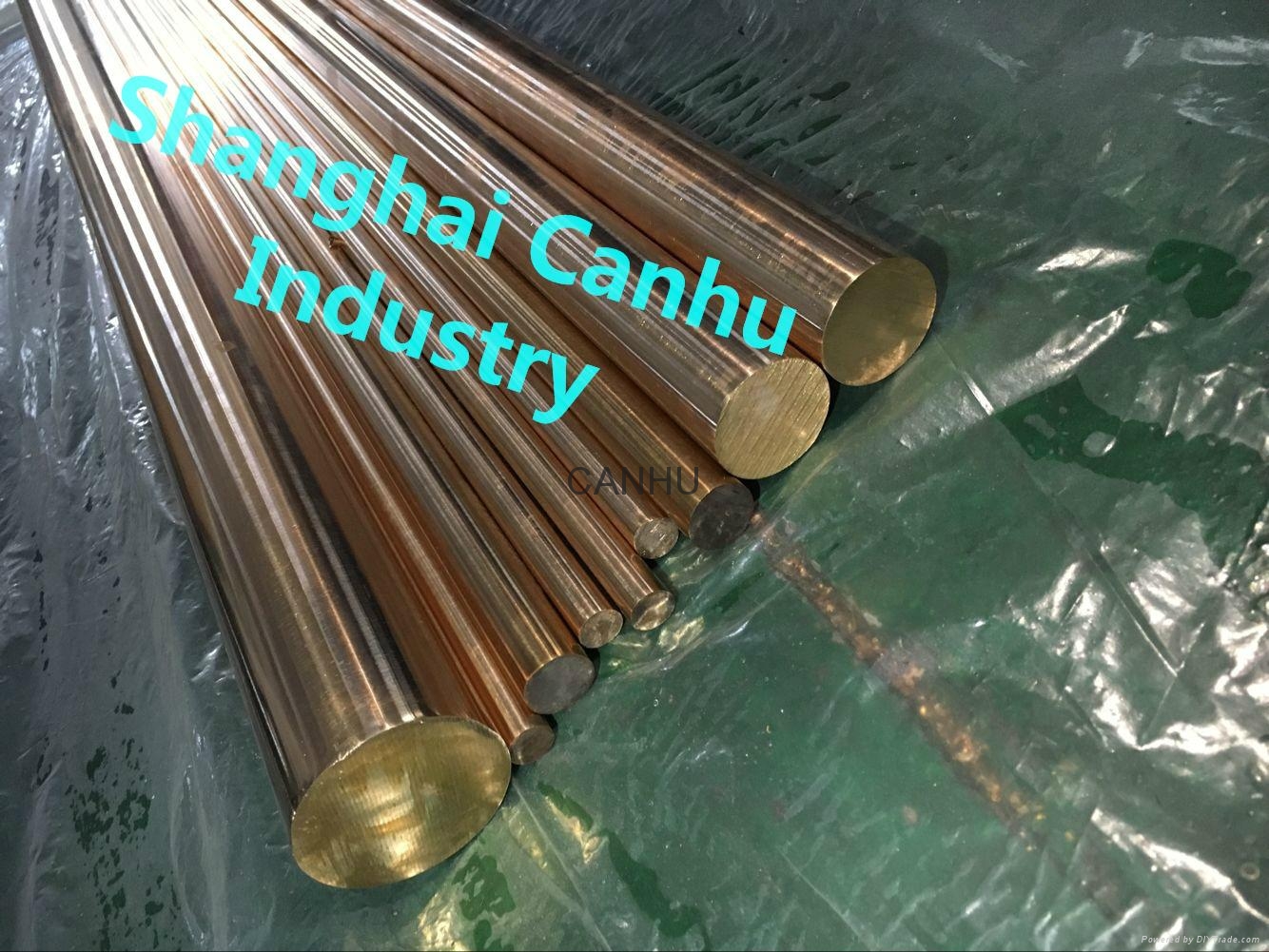

Product Image
